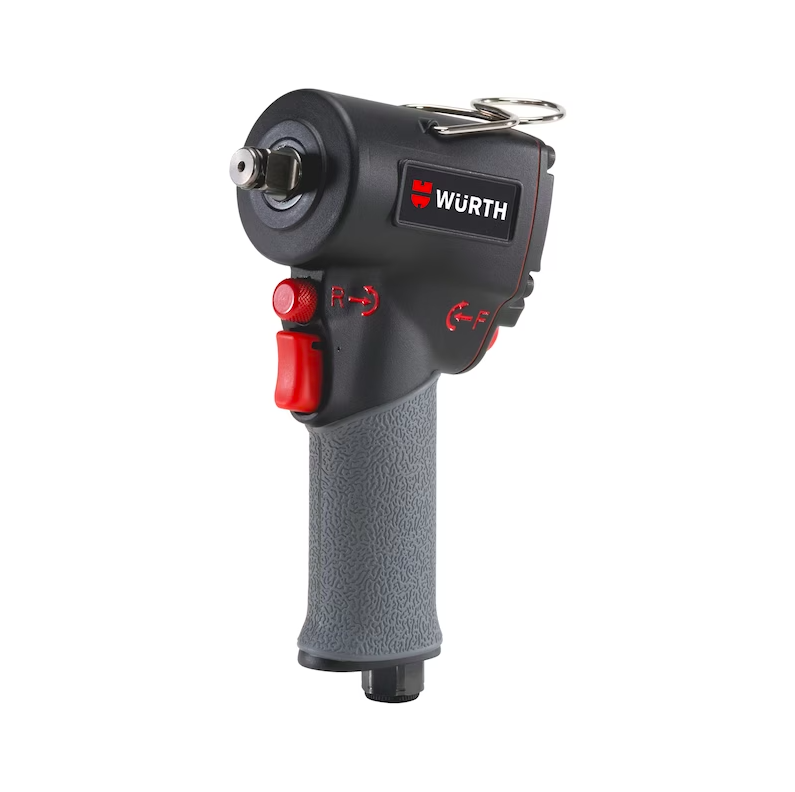

Wurth Pneumatic Compact Impact Screwdriver Gun (Power Tool)

The Wurth Pneumatic Compact Impact Screwdriver Gun.

Very powerful yet compact pneumatic impact screwdriver with outstanding power-to-weight ratio. Maximum recommended screw size: M16.

Long service life and optimal balance distribution

Compact and extremely powerful jumbo hammer mechanism

- High power development with small size and low weight, up to 1,100 Nm breakaway torque.

Optimum and user-friendly adjustment to any application, at any time

-Three-stage power setting for clockwise rotation, with sensitive trigger

Application area: Ideal where space is limited, e.g. gearbox, engine compartment, brakes

Key Benefits

• Rugged, well-balanced unit in aluminium housing.

Very handy and user-friendly

• Rubberised handle prevents unpleasant cooling
• User-friendly clockwise/anti-clockwise changeover and adjustable button

Notice

• Impact screwdrivers are not torque screwdrivers. Connections requiring a specific torque must be checked by means of a torque measuring device after tightening with the impact screwdriver.
• When the impact screwdriver is used regularly, a little oil should be added daily through the compressed air supply.
• Plug-in nipple not included in the scope of delivery

Product Specifications or Features

• Brand: Wurth
• Type description: DSS 1/2 inch Compact
• Tool holding device: 1/2-inch external square
• Max. working torque: 678 Nm
• Max. releasing torque: 1100 Nm
• Sound-pressure level: 102 dB
• Vibration: 7.5 m/s²
• Operating pressure: 6.3 bar
• Weight of machine: 1.34 kg
• Min. hose inner diameter: 9 mm
• Air consumption: 122 l/min
• Connection thread: 1/4 inch
• Length x width x height: 109 x 57 x 188 mm
