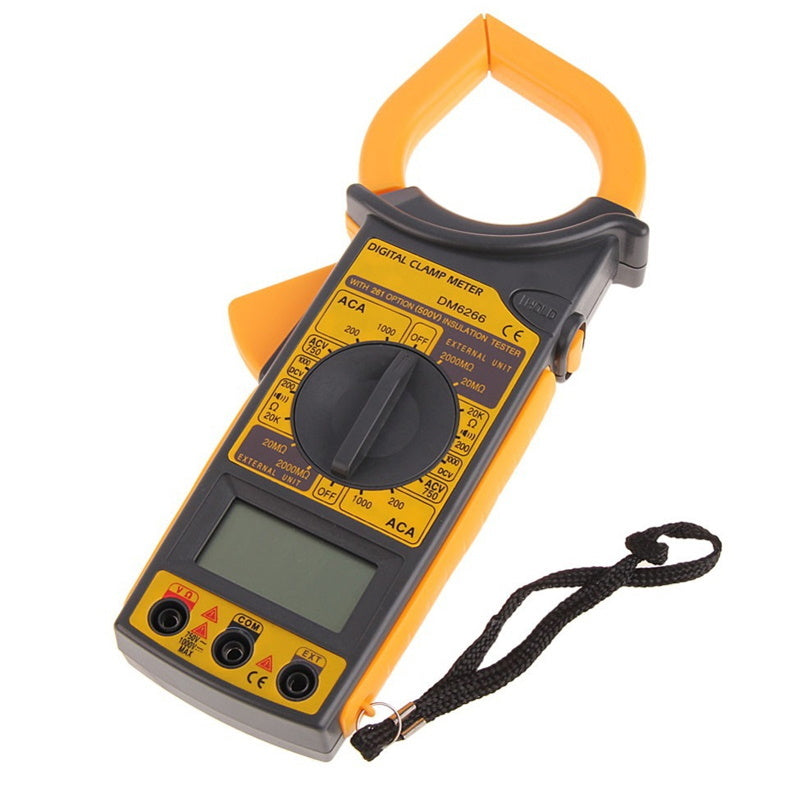

Digital Clamp Meter DM6266 - AC/DC Voltage, Resistance & Frequency (Batteries Incl.)

DM6266 digital clamp meter with batteries: a one-hand clamp meter that reads AC current to 1000A without breaking the circuit, plus AC and DC voltage, resistance, frequency and temperature, with data hold, a continuity alarm and a low-battery display. Double-insulated 50mm jaws for a non-contact reading on a live conductor; manual ranging; 9V battery included. The meter for an electrician's bag, a solar install or the home workshop.

Key Benefits

• Clamp reading to 1000A: AC current without disconnecting a wire; 50mm jaw
• Six functions: AC current, AC and DC voltage, resistance, frequency, temperature
• Data hold and continuity alarm: Read after the clamp comes off; beep on a closed circuit
• Batteries included: 9V (6F22), one-hand operation, overload protection

Product Specifications or Features

• Model: DM6266
• DC voltage: 1000V, ±(0.8% + 2)
• AC voltage: 750V, ±(1.2% + 4)
• AC current: 200A / 1000A, ±(2.5% / 3.0% + 5)
• Resistance: 200Ω / 20kΩ, ±(1.0% + 1)
• AC frequency: 40-400Hz
• Input impedance: 10MΩ
• Sampling: 3 times per second
• Range: Manual; maximum display 1999

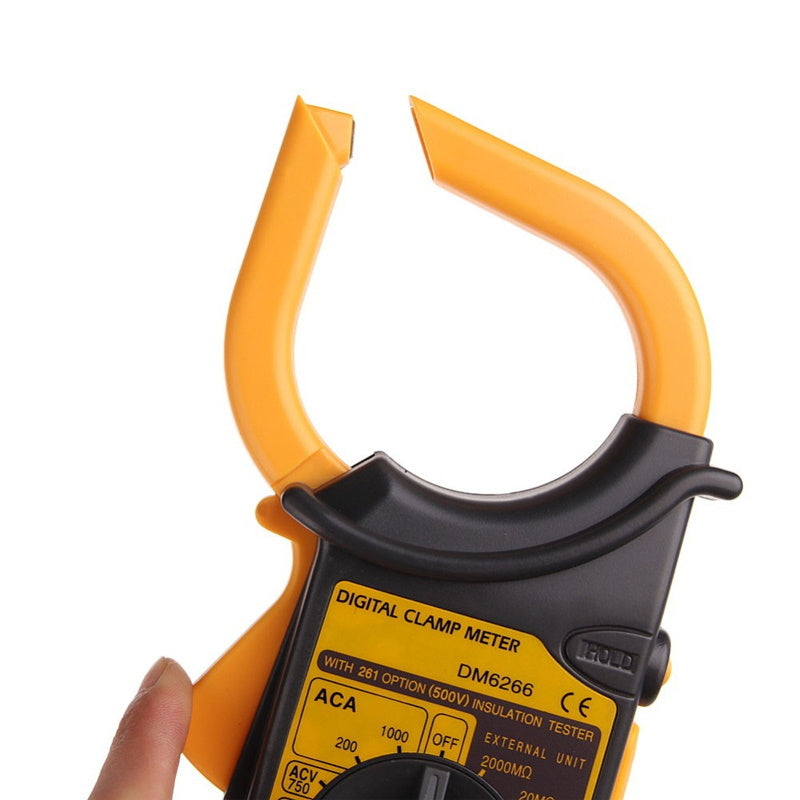

• Jaw opening: 50mm
• Protection: Overload protection, double-insulated clamp
• Power: 1 x 9V (6F22) battery, included
• Colour: Dark grey body

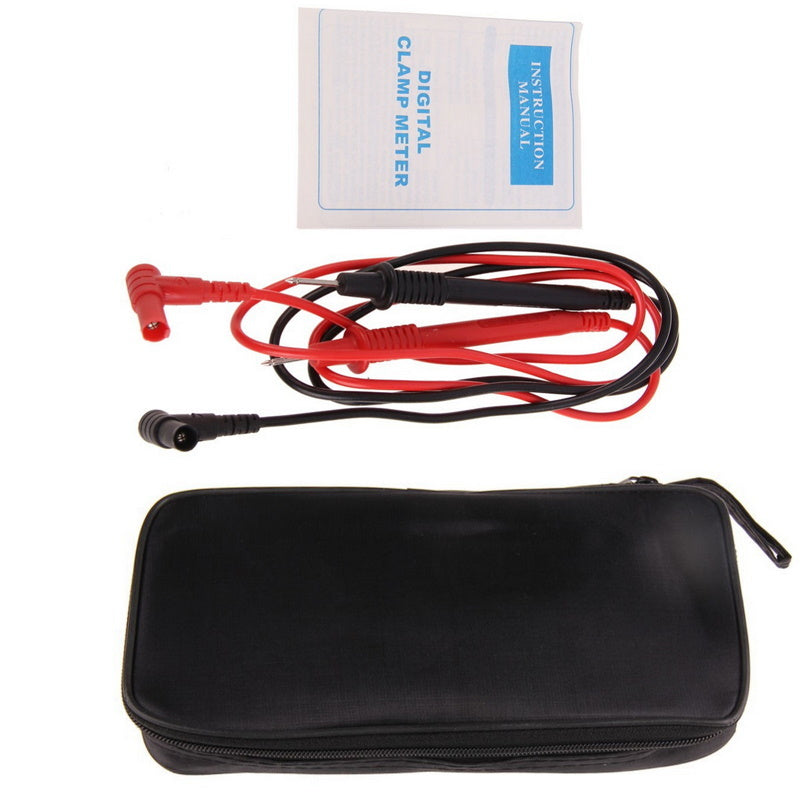

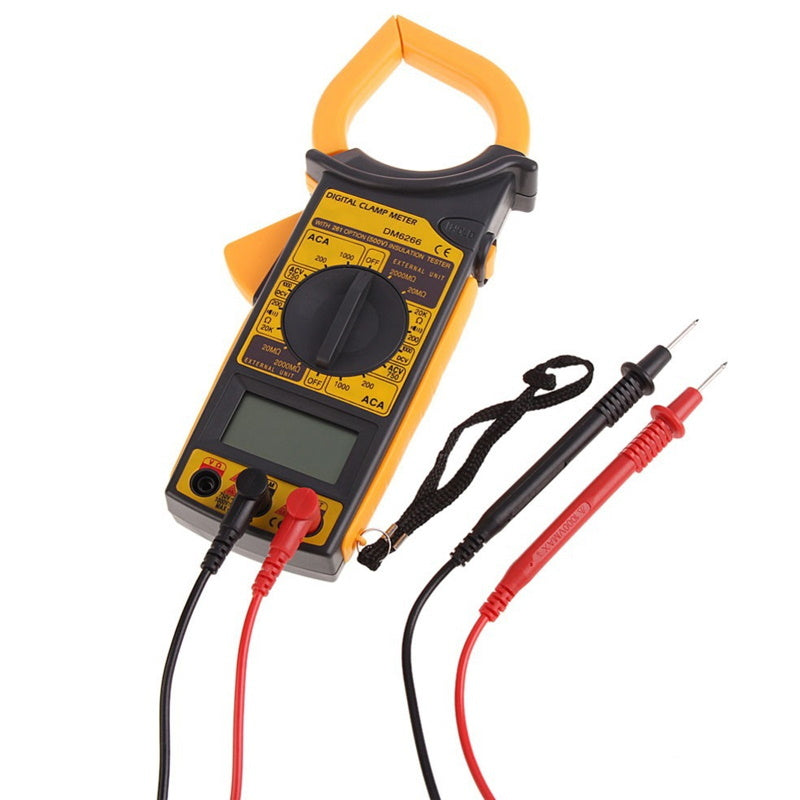

• Pack size: 1 meter with test leads
